Honda cr v 2015 2016 fuse box diagram. The video above shows how to replace blown fuses in the interior fuse box of your 2014 honda cr v in addition to the fuse panel diagram location.

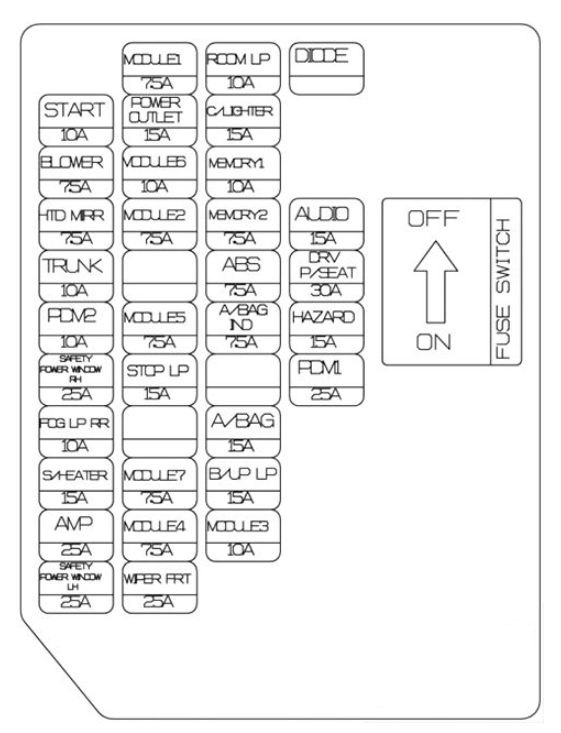

Hyundai Genesis Coupe 2013 2016 Fuse Box Diagram
2016 honda crv fuse box diagram. In this article we consider the second generation honda hr v available from 2016 to the present. Electrical components such as your map light radio heated seats high beams power windows all have fuses and if they suddenly stop working chances are you have a fuse that has blown out. Fuse box diagram fuse layout location and assignment of fuses and relays honda cr v mk4 rm1 rm3 rm4 2012 2016. Engine compartment fuse box. 2016 2017 engine compartment fuse box a number circuit protected ampere rating a 1 headlight low beam main 20 2 cdc 30 3 hazard 10 4 dbw 15 5 wiper 30 6 stop 10 7 igp 15 8 ig coil 15 9. For the honda cr v 2002 2003 2004 20052006 model year.
The under hood fuse box is located in th eengine compartment on the drivers side. Fuse box diagram location and assignment of electrical fuses for honda cr v 2012 2013 2014 2015 2016. Honda hr v from 16 fuse box diagram year of production. Honda cr v 2015 2016 fuse box diagram year of production. 2015 2016 engine compartment fuse box number circuit protected ampere rating a 1 eps 70 power tailgate 40 absvsa motor 40 absvsa fsr 20 e dps 30 main fuse 100 2 main 50 fuse box main 60 fuse box main 2 60 headlight high. Here you will find fuse box diagrams of honda hr v 2016 2017 2018 and 2019 get information about the location of the fuse panels inside the car and learn about the assignment of each fuse fuse layout.
Checking and replacing fuses if something electrical in your vehicle stops working check for a blown fuse first.
