Attempt to start up the vehicle. The scematic shows 3 wire with a gang of 5 switches which makes it interesting.
Acdelco D2263c Gm Original Equipment Park Neutral Position And Back Up Lamp Switch

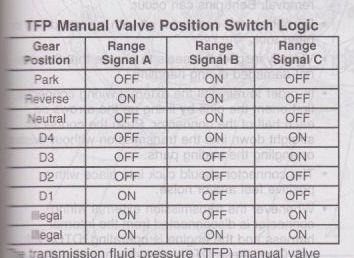

4l60e gear position indicator. While the pcm was on its way back i noticed there was a kink in my shift cable so i took it out and have a new one coming tomorrow. I just got it back today and the light still does not show up telling me what gear i am in. Shifter display kit to suit th700 and 4l60e transmissions. Part 2 of 7. I do not have any way to tell what combination the switches will be on or off in any particualer gear. Diameter column acrylic each 6 part number.
I am trying to connect my new lokar shifter indicator to the 4l60e cm transmission and i can not find any schematics on line. The stock manual lever position switch for the 4l60e only has 3 inputs to determine gear positionselection. If the engine starts up try to put the transmission in gear. Click image or text to view details universal gear shift sending unit gss 3000. The display indicates the gear positions which are illuminated green while the actual gear selected is indicated with a red led next to the relevant gear. Gear indicator 3 speed plus overdrive mounts on any 4 in.
The display is also fitted with a fault indicator light which is used to show any ecm or pcm problems. I have a schematic it may help you or confuse you. Led gear position indicator dgs 12 dgs 13 dgs 12v dgs 13v. Mounting hardware to fit the gm 4l60 4l60e automatic transmissions. Compatible for use with all lokar automatic transmission shifters. Gear 2nd 3rd 4th 1 2 shift solenoid 2 3 shift solenoid gear ratio 1 oool wire 05 l gn 05 yebk 035 ogbk 035 035 ye 035 wh 035 ogbk 035 yebk 035 tn os bkavh 05 tnbk 035 d buavh 035 ogbk circuit 1222 1223 1228 1229 3039 771 1230 1227 452 1551 422 418 1231 1786 fun ction i 2 solenoid valve control 2 3 shift solenoid valve control.
Automotive gear position indicators auto. If the transmission will not go into gear or it is sluggish in drive then the sensor has failed. Does anyone have a schematic of this box. Color coded wiring instructions for easy installation. Check the condition of the transmission position sensor. Put the transmission shifter in the park position.
Gear shift position sending unit for use with our 12 volt led indicators. Oval gearmisc indicators dgs 4. Displays transmission position in engaged gear only. Fully push button adjustable with no magnets to align. My gear indicator light in my prnd321 did not show up so i sent the pcm back to jared to be re programmed. It is suppsed to wire directly to this small box that indicates what gear you on in.
