The white wire is neutral and completes the electrical circuit. We are trying to install ceiling fan in our home.
Purple Ceiling Fan Wire Pink And Fans With Lights Beaded

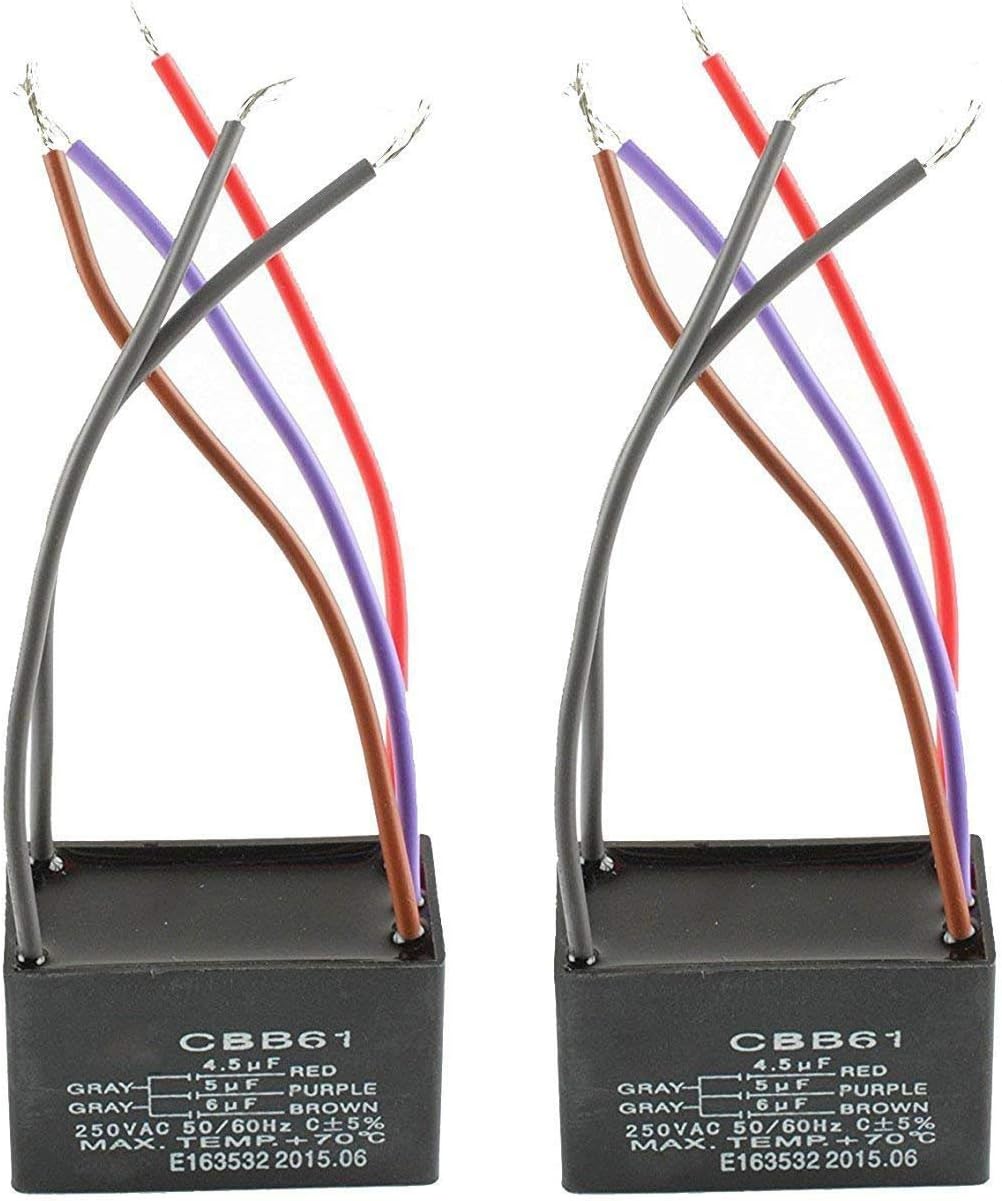

Ceiling fan purple wire. The fan and a lighting assembly. To connect ceiling fan wires first turn the power off from the circuit breaker box so you dont electrocute yourself. Hampton bay ceiling fan alternate colors. The switch replacement is below. Switch wiring based on capacitor connection your capacitor configuration may vary the capacitor may have 4 5 wires with 2 or 3 μf readings such as cbb61 or 3 wires different in color. Lblack 2brown 1purple 3grey or lblack 2brown 1grey 3purple.
However in sha allah in further post i will explain the fan 5 wire capacitor regulating speed switch diagram and replacement of fan capacitor in fan motor. After this strip the ends of the wires so the. Wiring a ceiling fan with four wires is the most common however an additional color wire may be incldued. Here is what each wire color represents. Various sticky threads im not sure. Once its screwed in hang the ceiling fan in the bracket.
Hampton bay ceiling fan. Sometimes either or both the switch and capacitor fail. A ceiling fan usually consists of two main parts. Candes swift deluxe 1200 mm 48 inch high speed 400 rpm anti dust 100 copper ceiling fan 3 yrs warranty pack of 2 coffee brown 6 price from 3745. Once the power is off read the instruction manual that came with the fan so you install everything correctly. The capacitor usually has 2 wires on one end.
For a hampton bay fan 4 wire capacitor 3 speed switch. This might apply to the new motor hunter originals or even the. Then screw the ceiling fan bracket into the ceiling and thread the wires coming out of the ceiling through the center so theyre freely hanging down. Ceiling fan wire colors may be slightly different than your household circuit wires. The red or striped wire is the hot wire for the lighting fixture of the ceiling fan so if your ceiling fan does not have a lighting fixture it will only have the three other wires mentioned in the following sections. Always place wire caps over unused wires.
According to ceiling fan manual there should be 3 types of colored wires coming out of fan junction box. Lblack 2purple 1red 3yellow. White black and green for ground wire. Lblack 2brown 1grey 3green. Its important to understand what each wire does and how it connects with the others. Moreover sometimes this wire can come directly from the main circuit breaker in order to always be on.
Dec 28 generic 3 speed reversible spinner wiring diagram. The black wire is the main hot wire which generally comes from the. As i shown in the above ceiling an 3 wire capacitor diagram that red is common wire and yellow for microfarad and purple for farad. Now when we saw the existing wiring in homes ceiling junction box for fan we found black white and also yellow and purple wires coming out of. The black wire is the hot wire that leads to the switch. 2 blacks 2 greys or 2.
Speed control wires to switch black line l grey 1 brown 2 purple 3 the web is a wonderful library of answers.
