How To Identify No Nc Contacts Of Relay

Or copy this link to share. On the other hand contact point a contact point b and contact point c represent contact structures.

Relays Cautions For Use Automation Controls Industrial

Relays Cautions For Use Automation Controls Industrial

How to identify no nc contacts of relay. Add to cart show details. Normally closed nc contacts disconnect the circuit when the relay is activated. Request lead time. This spring defines the normal position of the common contact. The required activation voltage for the relay can be determined from its product code in the section of code enclosed with a dash which contains a number suffixed with vdc as shown below. Iec rated three pole contactor 1 no1 nc auxiliary contacts 12a fla max 5200.

The following animation shows how this pair operates. Ok we have the normal open and normal closed contact. Nema rated three pole contactor 2 no2 nc auxiliary contacts nema size 3 85a fla max 18400. But which state is considered as normal. The no and nc contacts are referred to the common terminal. It is also called form b contact or break contact.

And who defines the normal state. 24 v dc coil download datasheet. Autoplay when autoplay is enabled a suggested video will automatically play next. Add to cart update cart. Going one step closer to the relay operation we find the spring. Product attribute attribute value search.

Add to cart show details. Changeover relay with nonc contacts. If its not follow these simple steps to identify them 1 c common can be easily recognised as it is placed in the middle of any one of the side of a relay. 550 bright street east listowel ontario n4w 3w3 canada. What are nonc contacts and how nonc contacts work in automation. No normally open means the contact of the relay will be open during the relay coil de energised condition and contact close when relay coil energised condtionbut in thermal switch no means swich conacts open during the set.

400mm modular overload relay cable 1600. Normally open terminal normally closed terminal and common terminal respectively. Each symbol means a single terminal itself. 1 unit price. Between the nc and the no contact there is no contact at any time. Add to cart show details.

No terminal nc terminal and com terminal represent contact terminals symbols. 2 coil terminal lies besides the common terminal. Benshaw canada controls inc. 0 currently in cart. If you see the above 3 animations you will notice that. The circuit is connected when the relay is inactive.

615 alpha drive pittsburgh pa 15238 united states. No contacts may also be distinguished as early make or noem which means that the contacts close before the button or switch is fully engaged. To differentiate nc pin and common pin from the connected pins there is a need to apply voltage across the relay coil so as to activate it. Most of the relays have the abbreviations no nc c printed near the leads.

Gallery of How To Identify No Nc Contacts Of Relay

Switches And Relays
Download Now
Switches And Relays
Safety Precautions Of General Purpose Relays Cautions For
Download Now
Safety Precautions Of General Purpose Relays Cautions For
G7sa2a2bdc24
Download Now
G7sa2a2bdc24
Contactor Operation Application And Selection
Download Now
Contactor Operation Application And Selection
Identify Terminal Pins Of A Relay Without Reference To
Download Now
Identify Terminal Pins Of A Relay Without Reference To

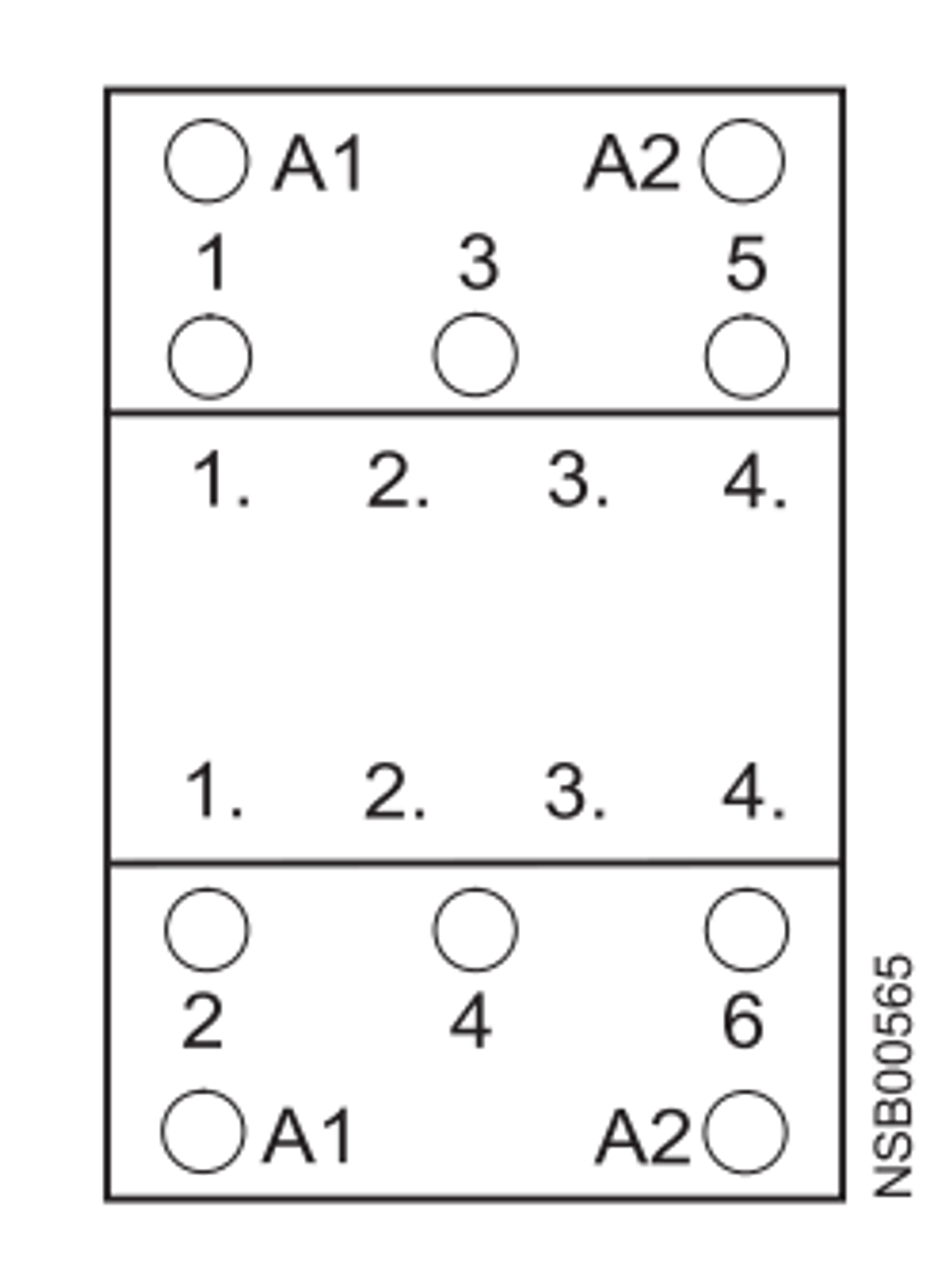

Screw Connection 35mm Standard Mounting Rail 22 E
