Start by taping one end of the power wire to the metal bumper support. How to wire driving lights to high beam signal discussion in lr4 started by brian harrison jul 12 2020 at 729 pm.
Understanding Relays Part 2 Din Numbers And Different Types

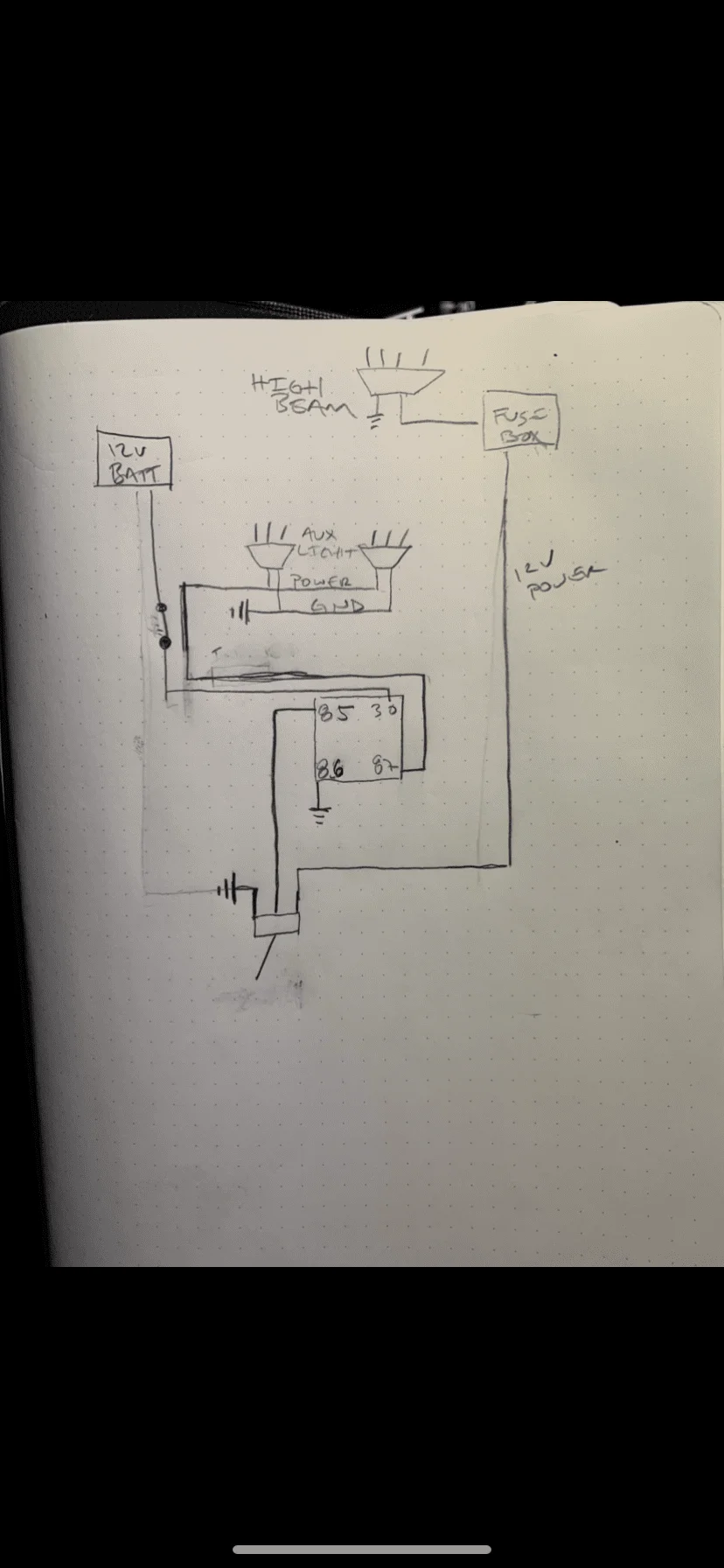

How to wire spotlights into high beam. By continuing to use this site you are agreeing to our use of cookies. Conceal the wire in existing wire looms as much as possible as you route the wire. The best location for the relay will be near the battery. Brian harrison new member. Installation went well except for tying into the high beam signal. The diagram below shows a simple wiring diagram for connecting spotlights to work together with your high beams.
Use a scotchlok connector and tap into the high beam headlight power wire using 16 gauge wire mount the relay using a self tapping sheet metal screw. You may choose to twist the wire around the positive post or solder it into place. So run a wire from your high beam to the 2. The final wire on 4 should be the same size as the wire used in 3 this is the one you hook your lights to. How to wire up spotlights high beam may 24 2018 by arfan leave a comment how to wire a relay for off road led lights wrg 5047 how to wire up spotlights high beam wiring diagrams the navara forum how do i change ceiling rose to spotlights downlights clic mini wiring spots and ls problems ions. Route the power wire toward the fuse box that contains the high beam relay.
Forums technical discussions lr4 this site uses cookies. Then run a wire from 1 to ground. Land rover and range rover forums. Toyotas ford ranger mazda bt50 among many other popular 4x4 are notorious for being very difficult and costly to wire driving lights to high beam our quick fit harness takes all the guess work. Jul 12 2020 at 729 pm 1. Leave at least one foot of wire hanging after the tape to leave enough slack for the connection to the lights.
Run a wire from one terminal on the dashboard switch through the firewall following a preexisting loom or other appropriate hole to the high beam wire on your vehicles headlamp this. Then run a sufficiently large wire from the battery to 3 with a fuse in line. All you need is some wire and lugs a 12v 4 pole relay and two fuse holders with the correct fuses. Run a wire from the relay to the positive post on the spotlight itself. Wire the relay to the positive post on the spotlight. Mount the driving lights using the bracket that is supplied with the lights.
Log in or sign up. Looking at the engine. To wire spotlights to work together with your high beams is not that difficult.
