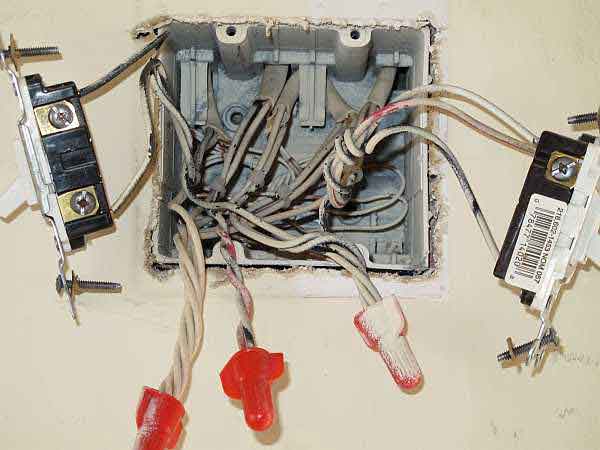

Wiring multiple switches in one box. Sparky channel 30549 views. Instead of running a separate pigtail from the hot wire to each switch just leave the hot wire extra long. Connect one end of the 6 inch wire to the top terminal of the first switch. The switches are connected with pigtail wires to the same source. If youve mounted two switches in the same electrical box prepare two black wires. To connect the switches simply score the wire with your wire stripper and push the insulation to expose about 34 in.
How to wire three switches in a gang box. Cut three six inch lengths of 14 solid thhn black. Junction box wiring and multiple circuits as stated in this question if the junction box has the required cubic inches for the wiring that will be installed then yes it is acceptable to have more than one circuit in the same electrical box or junction box. If this helped. Turn off the power to the circuit at the breaker panel. Wiring two switches in one box in this arrangement 2 switches are installed in one box.
Run cables from wall box. Wire or rewire multiple outlets in one box. The black wires running to the two separate light fixtures are each connected to one of the switches. How to wire two light switches with one power supply. How to wire 3 light switches in one box diagram triple switch intended for how to wire 3 light switches in one box diagram image size 951 x 603 px and to view image details please click the image. Here is a picture gallery about how to wire 3 light switches in one box diagram complete with the description of the image please find the image you need.
Another nm cable connects the first outlet box to the next box es and so on until you reach the end of the chain. It can be intimidating at first but hopefully youll be more confident after watching this. In depth step by step video demonstrating how to wire a multiple switch electrical box. Use a circuit tester to verify that the power is off to the circuit you are working on. Install a double switch wall box and run the feed cable. Shut off the power to the circuit.
Cut five six inch lengths of 14 solid. Multiple light switch wiring with conventional light switch wiring using nm cable a nm cable supplies line voltage from the electrical panel to a light switch outlet box. Twist the other end together with the. You will need three black wire pigtails and five green wire pigtails.
