Wiring off road lights with relay. The switch included gives more flexibility controlling the lights. The power relay can handle much more current than your typical dashboard switch. Most aftermarket off road lights come with a wiring harness that actually includes two correlating circuits. Using a power relay is highly suggested and will help prevent the power relay is shown in the off position. Follow the relays wiring schematic when connecting the wires to the relay one of the relays terminals goes to ground. Select your vehicle 0.
Auxillary driving lights switch wiring harness. Off road truck headlights electrical wiring simple switches 1. Quick easy install. The method i use for wiring the lights and other external accessories for the most part follows the diagram pictured above. 30 is your power source for your light. Connect the red wire from the fuse to battery.
Then run a heavy gauge wire from the battery to the relay placing a 30 amp fuse in line very close. By default this switch is open so the current cannot get from the battery to your lights. The white wire is connected to the other terminal on the switch. This is the most basic wiring system for off road lights but it is also not recommended by most lighting companies. Dc 12v operating volt is suitable for most off road car suv utv boats etc. As in the diagram a wire is run from a 12 volt power source to the switch in the cab and out to the relay placing a fuse at the source of the power.

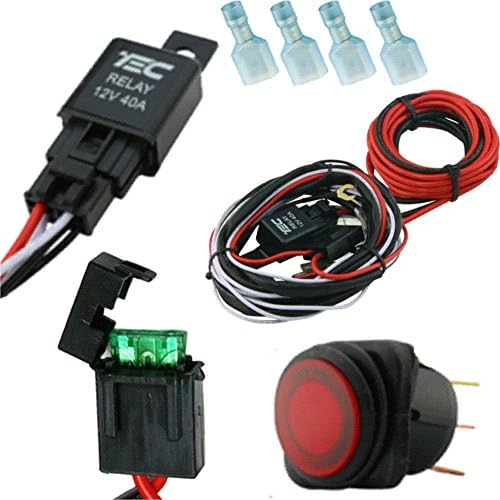

This listing is features one set new relay wiring harness with onoff switch universal fit for led daytime running lights off road driving lights and led work lights. Can wire a off road driving lightfog lightwork lightled light bar etc. 30 and 87 create the switch to your lights. Onoff switch with adhesive tape backing for easy mounting. 4964 route 30 greensburg pa 15601 724 837 7219. With our wiring harness all you need to do is cut the wire coming from the switch to the 30 prong on the relay and wire it to your high beam lead or your backup light wire.
Connect the black wire from the relay to the battery. Auxillary driving lights switch wiring harness. In this case you need to wire the dash switch in between the trigger current ie. Contact us policies returns refunds accepted payments. 1 x relay switch control wiring harness. The line you spliced off your high beam wire or your backup light wire.
When the switch is then flipped it carries the current though the white wire that trips the relay and allows current to flow to. Fog light driving light daytime light. Figure 1 shows a typical off road lighting setup. Connect the whiteblack wire from the relay to light barredblack correspond to the wire of lights bar. The left side is the pin out of the point is sticking out from at the bottom and the the right side is showing a schematic representation of the relay circuitry.
